• PDG INDUSTRIAL 164 C 13.5KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440+
• Winding 06 – 4 Wire 1PH / Winding 311 – 12 Wire 3PH
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor 1PH / .8 Power Factor 3PH
• Temp Rise/Ambient (125/40)
• Unit Weight: 260lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 19HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 27HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.

• PDG INDUSTRIAL 164 D 16KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440
• Winding 311 – 12 Wire
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• .8 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 275lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 23HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 32HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.

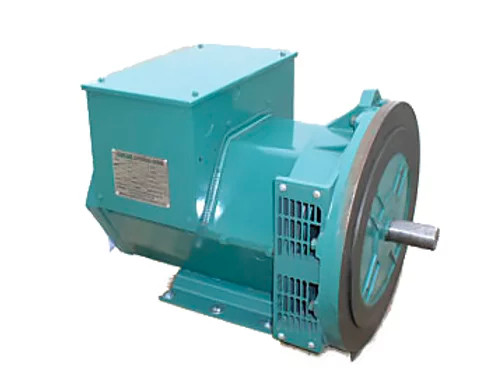

• PDG INDUSTRIAL 184 E 21KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440
• Winding 06 – 4 Wire
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 355lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 30HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 42HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.

• PDG INDUSTRIAL 184 F 25KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440
• Winding 06 – 4 Wire
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 405lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 36HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 50HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.

• PDG INDUSTRIAL 184 G 30KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440
• Winding 06 – 4 Wire 1PH / Winding  311 – 12 Wire 3PH
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor 1PH / .8 Power Factor 3PH
• Temp Rise/Ambient (125/40)
• Unit Weight: 425lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 43HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 60HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.

• PDG INDUSTRIAL 184 J 40KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440
• Winding 06 – 4 Wire 1PH / Winding 311 – 12 Wire 3PH
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor 1PH / .8 Power Factor 3PH
• Temp Rise/Ambient (125/40)
• Unit Weight: 500lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 57HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 80HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.

• PDG INDUSTRIAL 224 D 52KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440
• Winding 311 – 12 Wire
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• .8 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 615lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 74HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 104HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.

• PDG INDUSTRIAL 224 E 60KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AVR AS440
• Winding 311 – 12 Wire
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• .8 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 670lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 86HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 120HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain.  They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marat​hon, Leroy Somer, and Lima Mac.
